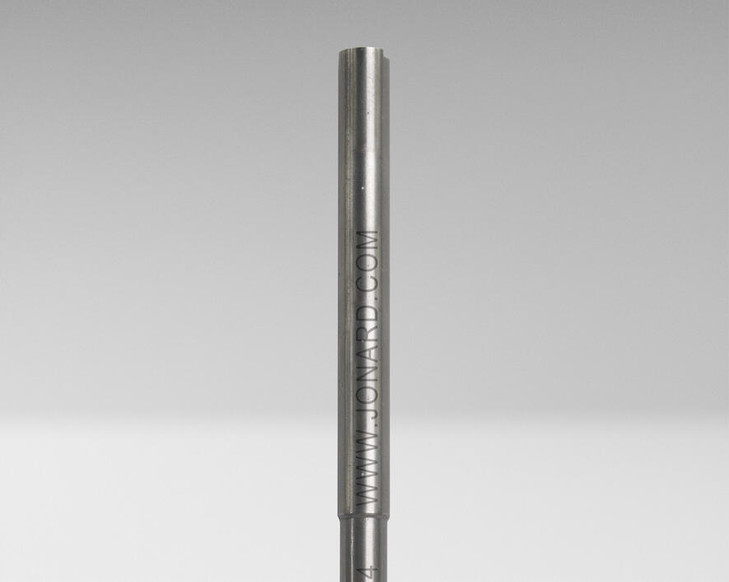

Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
- Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
- Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins
Compatible Wrap Sleeve Part #: P2224 and P2224INS
Specifications
| Sleeve Part No. | P2224 and P2224INS (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire Gauge | 24 AWG (0.5 mm) |
| Maximum Insulation Diameter | 0.046" (1.17 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Depth | 1.75" (44.5 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Effective Radius | 0.117" (2.97 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 3(7.8994cm) |
| Weight | 0.02 lb (7.264 g) |
| UPC # | 811490013223 |
| Data Sheet |
